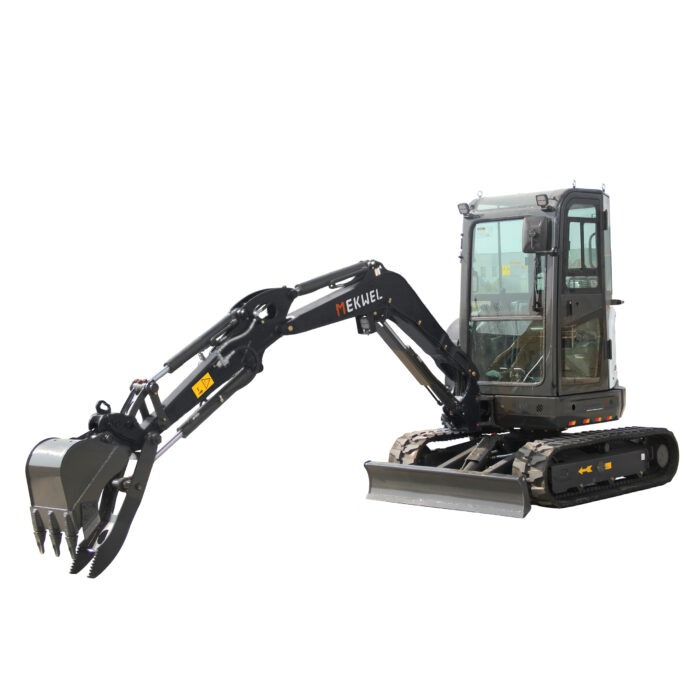

Mini excavator
Weight
2700kg
Power
14kW
Maximum digging height
4390mm
Maximum digging radius
4800mm
Maximum digging depth
2800mm
Maximum unloading height
3060mm
Versatility at Your Fingertips.
- The boom can swing left and right, increasing working capability by approximately 18%.
- The whole vehicle adopts the upper cylinder design to better protect the cylinder, extend the cylinder life, and increase the durability.
- Thanks to a full-opening engine cover that provides easy access to the engine and a conveniently located and protected hydraulic service port pipes, maintenance is simple.
SMALL SIZE, BIG POWER
Yanmar 3TNV80f engine
- The net weight of the complete engine is only about 117–130 kg.
- Excellent power-to-displacement ratio meets high-intensity operational demands.
- Equipped with advanced Indirect Injection (IDI) technology and a mechanical fuel system, this engine achieves superior fuel atomization and high combustion efficiency.
- Fuel consumption outperforms the industry average, significantly reducing daily operating costs.
- Compliant with US EPA Final Tier 4, EU Stage V, and China National Stage IV emission standards, this engine meets global environmental requirements while delivering low smoke emissions during operation.
- Thanks to Yanmar's proprietary noise reduction technology, the engine delivers exceptional control over noise and vibration during operation, significantly enhancing operator comfort during long working hours.
Detailed specifications
| Engine brand | Yanmar |
| Model | 3TNV80F |
| Maximum power | 14kW |
| No. of cylinder | 3 |
| Cooling method | Water cooling |
| Fuel type | Diseal |
| Fuel grade | No.10 |
| Hydraulic oil tank | 22L |
| Maximum rotational speed | 3000 |
| Engine oil capacity | 3.4L |
| Bucket capacity | 0.065m³ |
| Maximum digging height | 4390mm |
| Maximum unloading height | 3060mm |
| Maximum digging depth | 2800mm |
| Max. digging radius | 4800mm |
| Side swing angle (L/R) | 55/60 |
| Travel speed low/high speed | 2.3/4 km/h |
| Climbing ability | ≤30° |
| Extendable undercarriage | × |
| Overall length | 4200mm |
| Overall width | 1550mm |
| Overall height | 2480mm |
| Bulldozer width / height | 1550/310 |
| Working weight | 2700kg |
