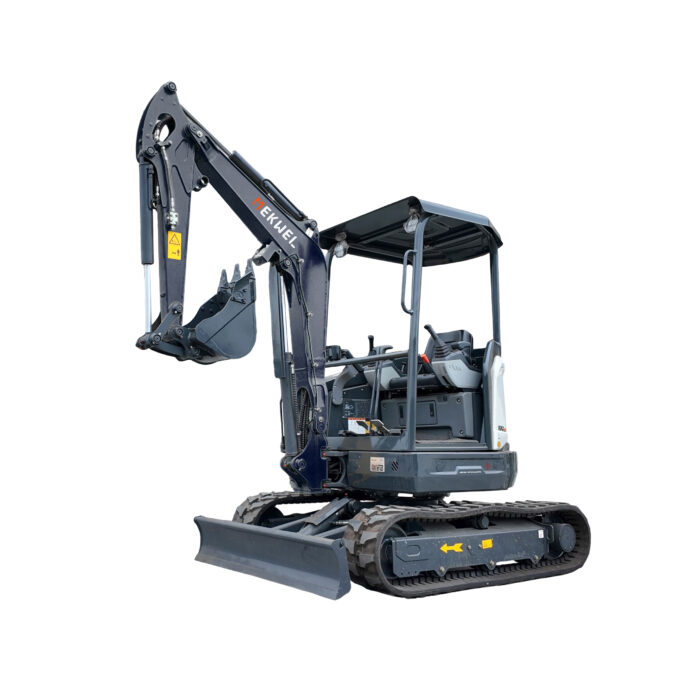

Mini excavator
Weight
2700kg
Power
14.6kW
Maximum digging height
4390mm
Maximum digging radius
4800mm
Maximum digging depth
2800mm
Maximum unloading height
3060mm
Versatility at Your Fingertips.
- S30sr is equipped with an extended and thickened boom, providing a larger digging radius and greater digging depth.
- The boom can swing left and right, increasing working capability by approximately 18%.
- The whole vehicle adopts the upper cylinder design to better protect the cylinder, extend the cylinder life, and increase the durability.
More convenient maintenance
The New Standard in Micro Excavation
Form Follows Function. Service Follows Simplicity.
Engineered Inside for Efficiency. Proven Outside for Performance.
Comfortable cabin
Ergonomic design, spacious and convenient
Plenty of legroom
The driver’s seat is adjustable forward and backward to accommodate different body sizes.
Detailed specifications
| Engine brand | Yanmar |
| Model | 3TNV80F |
| Maximum power | 14.6kW |
| Travel motor | Aidi |
| Swing motor | Hengli |
| Cooling method | Water cooling |
| Fuel type | Diseal |
| Fuel capacity | 33L |
| Hydraulic oil tank | 22L |
| Multi-way valve | Hengli |
| Gear Pump | Hengli |
| Hydraulic flow rate | 86.4L/min |
| Hydraulic pressure | 24.5MPa |
| Bucket capacity | 0.065m³ |
| A. Maximum Digging Height | 4390mm |
| B. Maximum Unloading Height | 3060mm |
| C. Maximum Digging Depth | 2800mm |
| E. Max. digging radius | 4800mm |
| Side swing Angle(L/R) | 55/65 |
| Travel speed low/high speed | 2.3/4 |
| Climbing ability | 30% |
| Extendable Undercarriage | × |
| J. Overall length | 4200mm |
| K. Overall Width | 1550mm |
| L. Overall Height | 2480mm |
| Bulldozer Width/Height | 1500/310mm |
| Working Weight | 2700kg |
