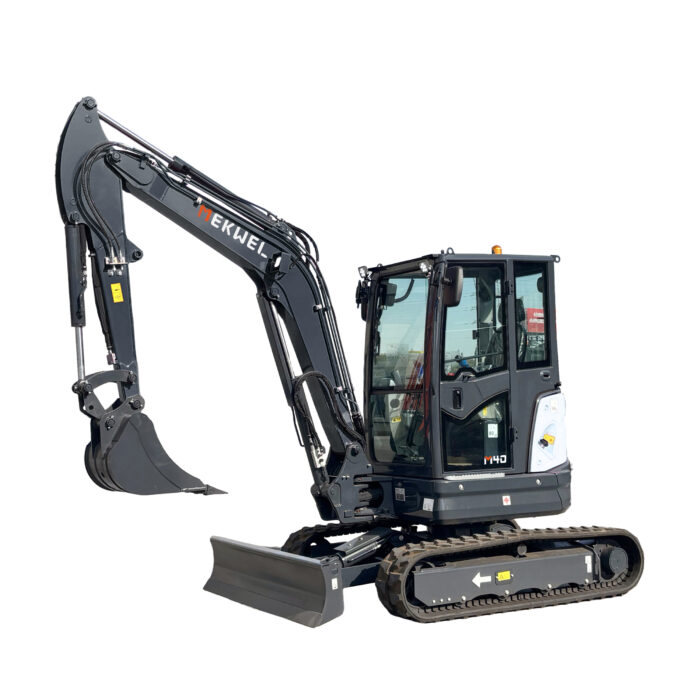

Premium mini excavator
Weight
3850kg
Power
18.2kW
Maximum digging height
4925mm
Maximum digging radius
5390mm
Maximum digging depth
3120mm
Maximum unloading height
3400mm
Small | Mighty
The next-generation mini excavator redefines compact power with an ultra-short tail swing design, reducing job site footprint by 20% while maintaining exceptional stability. Equipped with a fully digital 7-inch touchscreen display and ergonomic cabin with climate control, operators stay comfortable and in command through any task. A next-level vibration damping system minimizes fatigue during long hours of operation. Compatible with a full range of attachments—from augers to tilt buckets—it effortlessly handles digging, grading, ditching, and landscaping with precision and ease.
Control at Your Fingertips
Dig Smarter, Not Harder
One Machine. Endless Applications
From Landscaping to Construction—We Dig It All.
Precision Engineered | Powerfully Compact
The New Standard in Micro Excavation
Form Follows Function. Service Follows Simplicity.
Engineered Inside for Efficiency. Proven Outside for Performance.

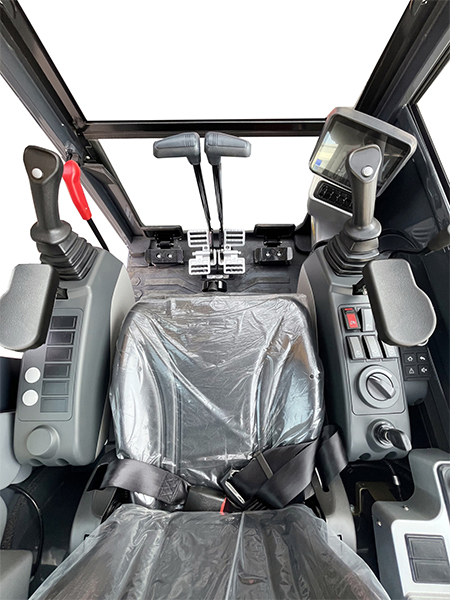

Comfortable cabin
Ergonomic design, spacious and convenient
Plenty of legroom
The driver’s seat is adjustable forward and backward to accommodate different body sizes.
Detailed specifications
| Engine Brand | Kubota |
| Model | D1703 |
| Maximum power | 18.2kW |
| No. of cylinder | 3 |
| Cooling method | air-cooled |
| Fuel type | Diseal |
| Fuel Capacity | 40L |
| Hydraulic oil tank | 41L |
| Bucket capacity | 0.06-0.26m³ |
| A. Maximum Digging Height | 4925mm |
| B. Maximum Unloading Height | 3400mm |
| C. Maximum Digging Depth | 3120mm |
| E. Max. digging radius | 5390mm |
| Side swing Angle(L/R) | 72/44 |
| Travel speed low/high speed | 2.3/4 km/h |
| Climbing ability | 70% |
| Extendable Undercarriage | × |
| J. Overall length | 4890mm |
| K. Overall Width | 1700mm |
| L. Overall Height | 2560mm |
| Bulldozer Width/Height | 1700/300 |
| Working Weight | 3850kg |
