Premium mini excavator
Weight
2800kg
Power
Power
Maximum digging height
4235mm
Maximum digging radius
4780mm
Maximum digging depth
2590mm
Maximum unloading height
3040mm
Small | Mighty
The new generation features a tailless design, reducing the overall weight by 15%; it is equipped with a 7-inch LCD touchscreen display for comfortable annt operation, along with air conditioning. The machine employs a three-stage shock absorption system to ensure operator comfort; when paired with multi-functional attachments, it can perform digging, loadineveling, and trenching tasks.
Small Machine | Big Ambition
Dig Where Dreams Begin
The Little Excavator That Does It All
From Backyards to Boulevards, We Dig It All
Precision Engineered | Powerfully Compact
The New Standard in Micro Excavation
Form Follows Function. Service Follows Simplicity.
Engineered Inside for Efficiency. Proven Outside for Performance.

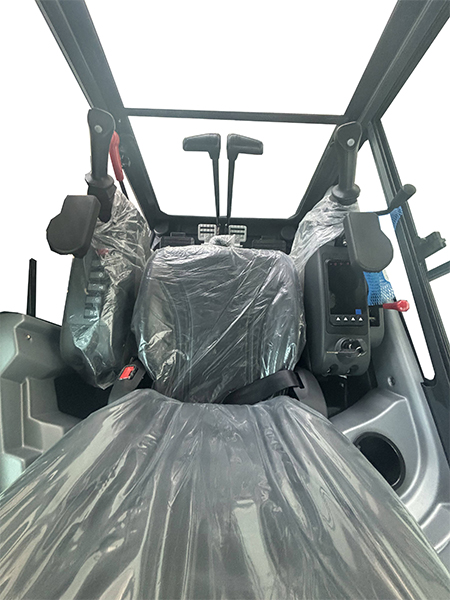

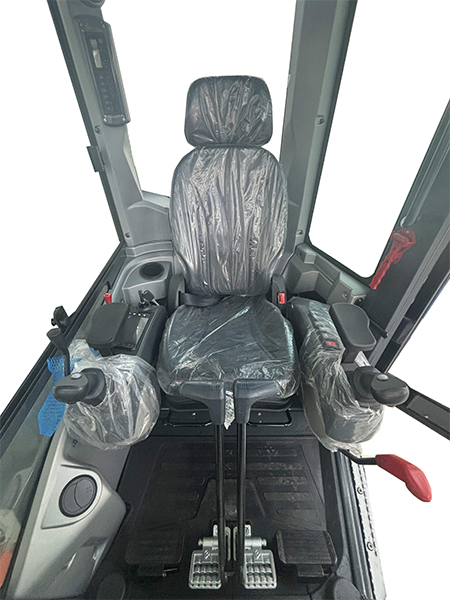

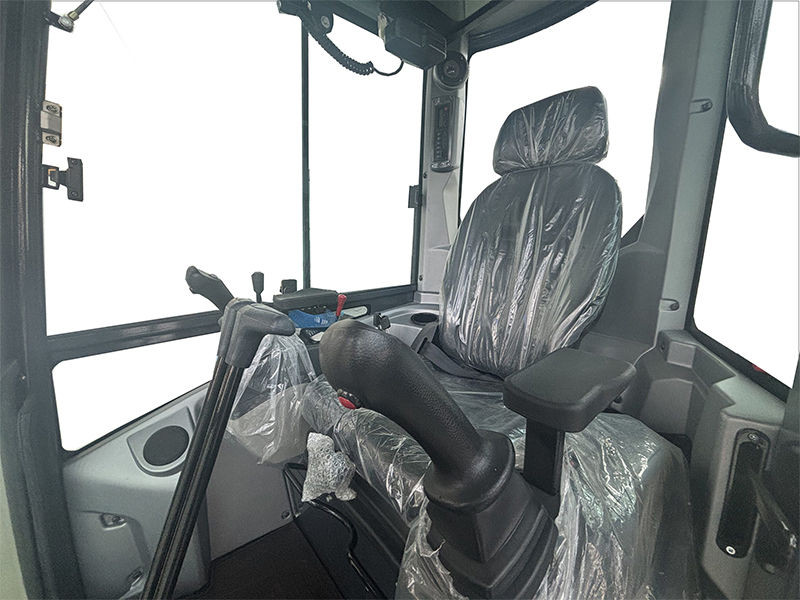

Comfortable cabin
Ergonomic design, spacious and convenient
Plenty of legroom
The driver’s seat is adjustable forward and backward to accommodate different body sizes.
Detailed specifications

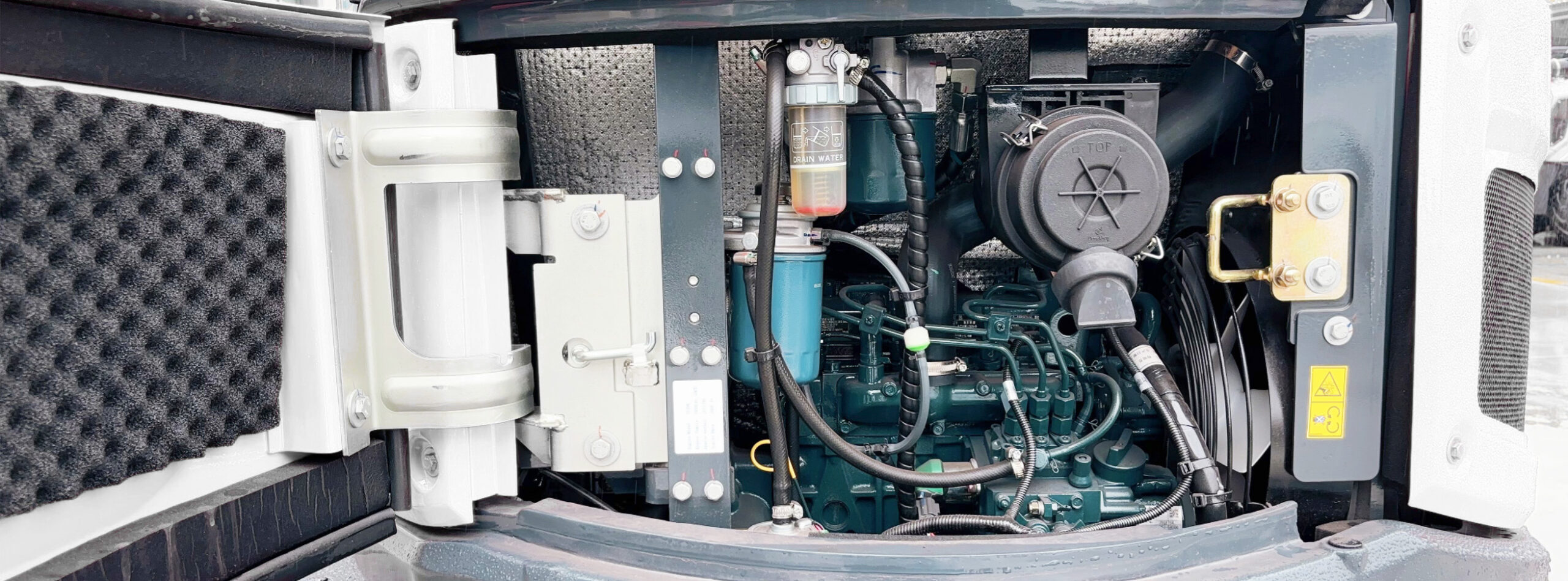

| Engine Brand | Kubota |
| Model | D1105 |
| Maximum power | 15.4kW |
| No. of cylinder | 3 |
| Cooling method | Water cooling |
| Fuel type | Diseal |
| Displacement | 1123cc |
| Fuel Capacity | 26L |
| Hydraulic Flow Rate | 67.2L/min |
| Hydraulic Pressure | 24.5Mpa |
| Battery | 12V,63Ah |
| Bucket capacity | 0.04-0.13m³ |
| A. Maximum Digging Height | 4235mm |
| B. Maximum Unloading Height | 3040mm |
| C. Maximum Digging Depth | 2590mm |
| E. Max. digging radius | 4780mm |
| Side swing Angle(L/R) | 65/50 |
| Travel speed low/high speed | 2.3/4 km/h |
| Climbing ability | 57% |
| Track Size | 3005578(WPL) |
| Extendable Undercarriage | × |
| J. Overall length | 4150mm |
| K. Overall Width | 1500mm |
| L. Overall Height | 2510mm |
| Bulldozer Width/Height | 1500/300 |
| Working Weight | 2800kg |
