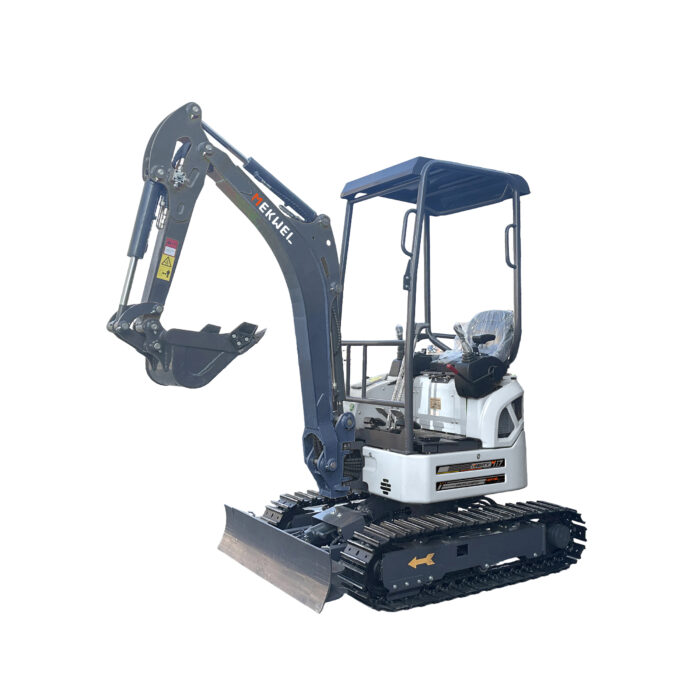

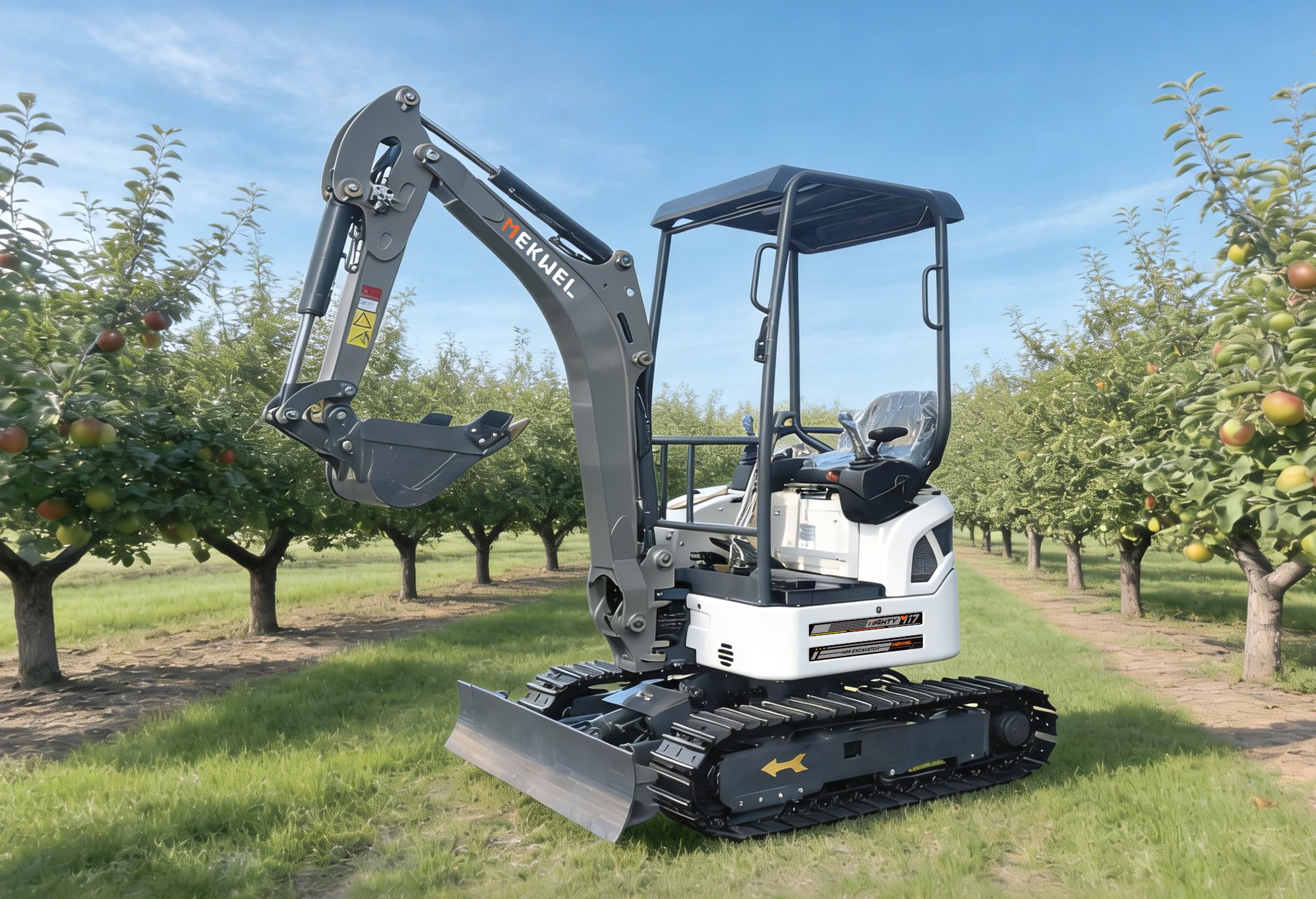

Premium mini excavator
Weight
1750kg
Power
11.8kW
Maximum digging height
3100mm
Maximum digging radius
3800mm
Maximum digging depth
2300mm
Maximum unloading height
2300mm
Versatility at Your Fingertips.
Weighing in at just 1.7 tons, this mini powerhouse is engineered to tackle tight spaces where larger machines simply can’t fit. With a narrow tail swing and compact footprint, it maneuvers effortlessly through backyard gates, narrow alleys, and crowded job sites.
Powered by a reliable, fuel-efficient engine, it delivers impressive digging force and breakout torque—perfect for trenching, landscaping, foundation work, and utility installation.
Compact by Design | Mighty by Nature
1.7 Tons of Pure Capability
From Backyards to Job Sites—One Machine, One Mission.
Fits Where Others Can’t. Works Where Others Won’t.
Precision Engineered | Powerfully Compact
The New Standard in Micro Excavation
Form Follows Function. Service Follows Simplicity.
Engineered Inside for Efficiency. Proven Outside for Performance.
Detailed specifications

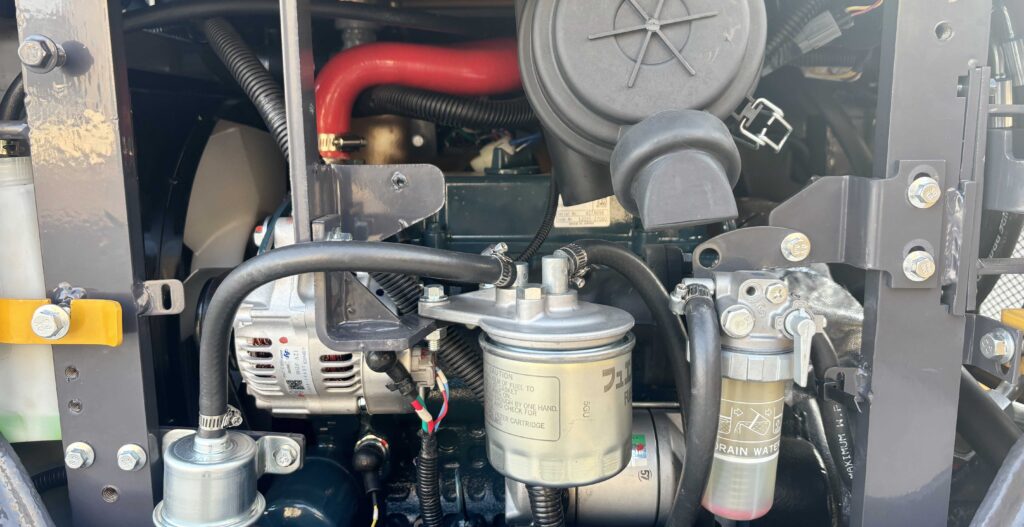

| Engine brand | Kubota |
| Model | D902 |
| Maximum power | 11.8kW |
| Maximum horsepower | 16 |
| No. of cylinder | 3 |
| Cooling method | Water cooling |
| Fuel type | Diseal |
| Fuel grade | 0# |
| Fuel capacity | 15L |
| Hydraulic oil tank | 18L |
| Bucket capacity | 0.03m³ |
| A. Maximum Digging Height | 3100mm |
| B. Maximum Unloading Height | 2300mm |
| C. Maximum Digging Depth | 2300mm |
| E. Max. digging radius | 3800mm |
| Side tilt angle | 55° |
| Travel speed | 0-3.6 km/h |
| Climbing ability | 30% |
| Maximum rotational speed | 2300 |
| J. Overall length | 3600mm |
| K. Overall Width | 1200/1100mm |
| L. Overall Height | 2410mm |
| Bulldozer Width/Height | 1240(990)/257 |
| Ground clearance | 1000mm |
| Working Weight | 1750kg |
