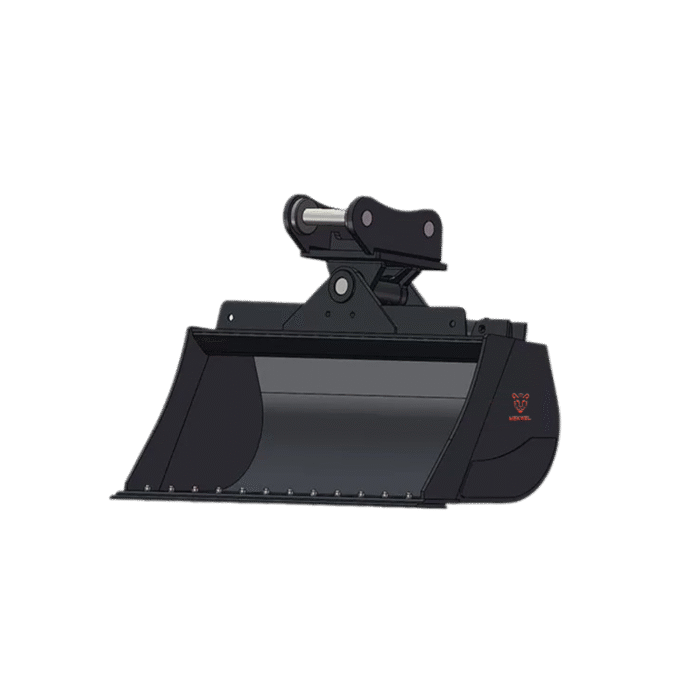

Angle Tilt Bucket (Single Ram)
Use the Mekwel Tilt Bucket to handle a variety of angles on the job. This economical tilt bucket is the ideal solution for slope finishing.
- Slope Finishing
- Land Clearing
- Waste Handling
- Grading
- In order to achieve a more perfect flt, mekwell can customlze the size according to the needs of customers.
Mekwel Tiger
Angle Tilt Bucket
Mekwel angle tilt buckets can increase productivity because they provide a maximum of 45 degrees of left and right slope. When tilting, trench, grading, or ditch cleaning, the control speed is fast and positive, so you can get the right slope on the first cut.
- Range from 1.5 to 9 ton excavators.
- Tilting 45° left and right to tackle any slopes.
- Compact & proven design.
- Single cylinder with mud guard protection.
- Reversible bolt-on cutting edge and side cutters are standard for better protection.
- Reinforced bucket strength with web plate.
- Mekwel offer a range of dual cylinder tilting buckets for excavators from 2 – 29 tonnes.
| Machine Type (Tons) | Model | Width (mm(in) | Heaped Capacity (m³(yd³) | Weight (kg(lbs) |
|---|---|---|---|---|
| 1.5 – 2 | AT02R-0800SR | 800 (32) | 0.062 (0.081) | 90 (198) |
| AT02R-1000SR | 1000 (40) | 0.079 (0.103) | 102 (224) | |
| 2.0 – 2.8 | AT02.8R-1050SR | 1050 (42) | 0.098 (0.128) | 168 (370) |
| AT02.8R-1200SR | 1200 (48) | 0.112 (0.146) | 183 (403) | |
| AT02.8R-1300SR | 1300 (52) | 0.122 (0.160) | 191 (421) | |
| AT02.8R-1400SR | 1400 (56) | 0.132 (0.173) | 199 (438) | |
| 2.8 – 4.0 | AT04R-1050SR | 1050 (42) | 0.120 (0.157) | 174 (383) |
| AT04R-1200SR | 1200 (48) | 0.139 (0.181) | 188 (414) | |
| AT04R-1300SR | 1300 (52) | 0.151 (0.198) | 197 (434) | |
| AT04R-1400SR | 1400 (56) | 0.164 ((0.215) | 206 (454) | |
| 4.0 – 6.0 | AT06R-1200SR | 1200 (48) | 0.175 (0.229) | 223 (491) |
| AT06R-1400SR | 1400 (56) | 0.206 (0.269) | 245 (540) | |
| AT06R-1200SR | 1200 (60) | 0.222 (0.290) | 255 (562) | |
| 6.0 – 9.0 | AT09R-1400SR | 1400 (56) | 0.272 (0.356) | 375 (826) |
| AT09R-1500SR | 1500 (60) | 0.293 (0.383) | 390 (859) | |
| AT09R-1600SR | 1600 (64) | 0.314 (0.411) | 406 (895) | |
| AT09R-1700SR | 1700 (66) | 0.334 (0.437) | 422 (930) |
Adopt double-edged plate style, the secondary cutting plate is a casting, the performance is comparable to NM400 material, the secondary cutting plate is a counterbore square diameter, and the bolts are hidden in the cutting plate, which does not affect the flat ground work.
Except for small tons, the width is below 1000 mm and the width is limited by the width of the single cylinder. All others use dual cylinders. Both can achieve left and right 45° oscillation.
The oil cylinder adopts imported sealing kit, which greatly improves the service life of the cylinder.
