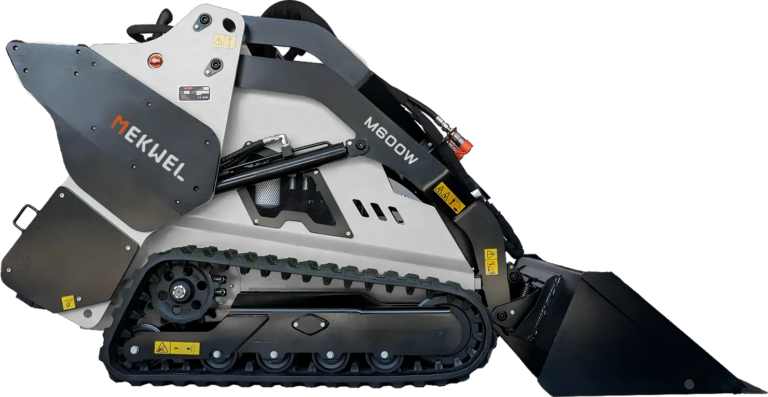

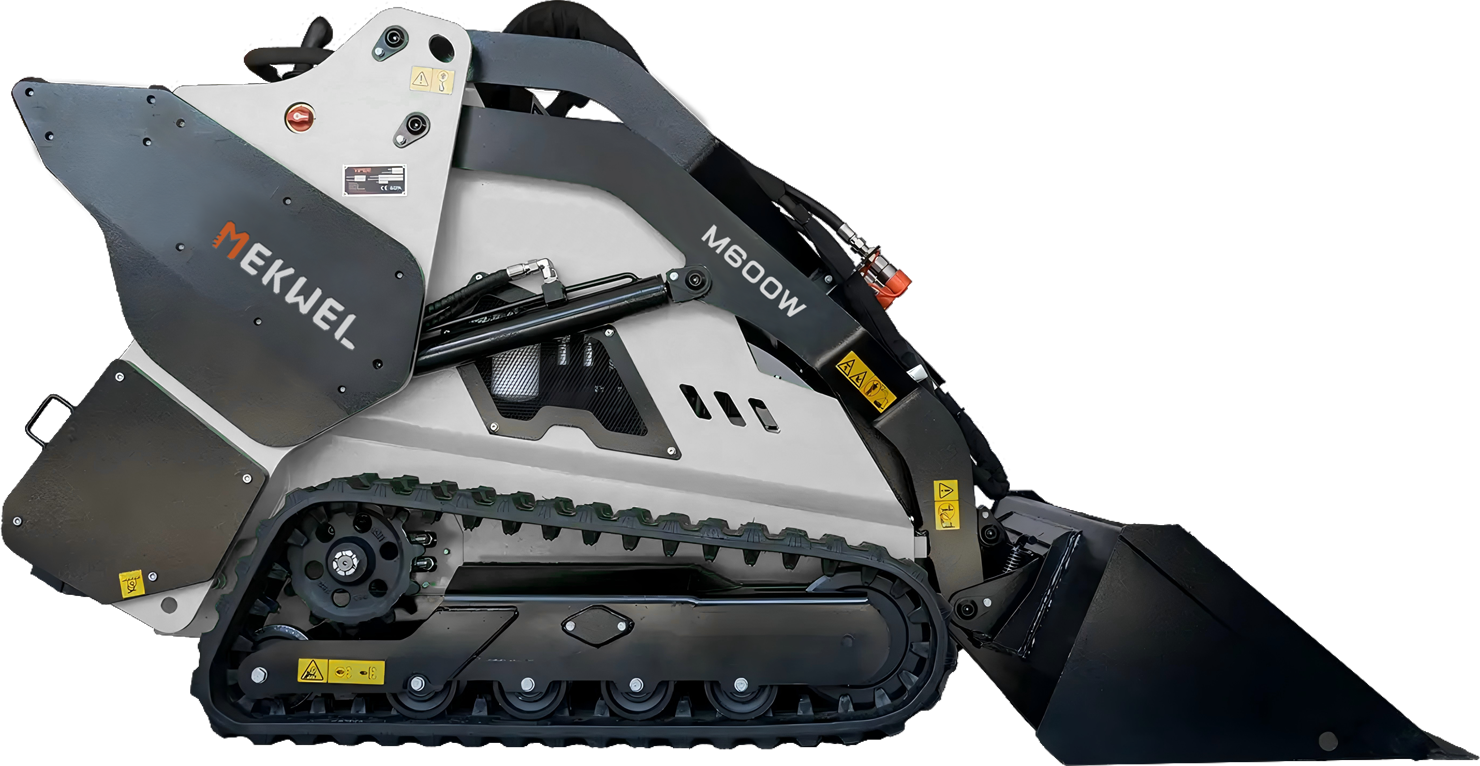

MEKWEL M600W Mini Track Loader
More power, More capacity with the M600W.
Weight 1510kg
Power 24HP Yanmar
Rated Capacity 600kg
Bucket 49” Standard
Construction site
Agricultural greenhouse
Logistics
Reclamation of wasteland
Factory
MEKWEL M600W gives you all the options and accessories you need to complete even the toughest tasks. With outstanding build quality and parts sourced from industry-leading manufacturers, the M600W is built to excel at anything you can throw its way. The M600W has a narrow footprint, powerful engine and impressive operating capacity, allowing you to tackle a large variety of jobs with ease.
FEATURES & BENEFITS
Self-Leveling Boom
Our self-leveling boom provides ease of use as well as added safety in your every day workload.
Auxillary Hydraulic Hookups
With two sets of quick couplers, you have your choice between running attachments with either cylinder drives or hydraulic flow returns. Truly a a do-it-all mini track loader!
Minimal Ground Disturbance Tracks
Our 8 inch wide rubber tracks provide the perfect drive system for close quarter, tight area work as they cause minimal ground disturbance on all terrains.
Heavy Duty, All-Welded Steel Frame
MEKWEL Loaders are built to last from the ground up, using up to 1/2″ high-grade steel for frame construction.

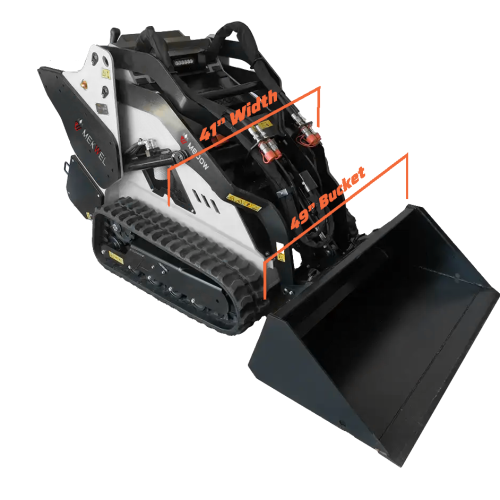

Narrow Footprint
Viper Loaders get in all the tight places with a narrow 41″ width, but carry bigger loads with a standard 49″ bucket.
Ease of Access
Our unique chassis design provides uninhibited access to all engine and hydraulic service areas, making maintenance and repairs quick and easy.
Intuitive Joystick Controls
The Mekwel M600W handling and maneuverability is made effortless with our ergonomic and intuitive joystick controls. Whether you’re a seasoned operator or using for the first time-Viper Loaders are designed for ease-of-use and smooth & safe operation.

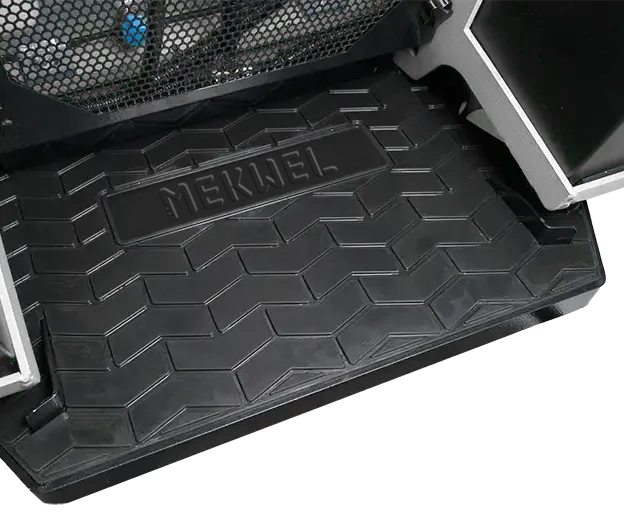

Operator Comfort
Tackling a full day of projects is made possible by our rubber bushing-mounted operator platform. The suspension-equipped pad helps lessen physical fatigue for more enjoyable operation. We’ve also added thick front and side bumpers that add to your safety and comfort during operation.
POWER & CAPACITY
CLEAN POWER. IMPRESSIVE LIFT.
Sporting the Yanmar 3TNV80F diesel engine, output is an impressive 24HP/17.8kW. With low fuel consumption and clean emissions, you operate long days with lower fuel costs. With a Rated Operating Capacity (ROC) of 1,300lbs, you’re able to put all that power to good use. Lift heavy loads with ease thanks to hydraulic components from Bondioli & Pavesi, CAT and Danfoss.
SOPHISTICATED CONTROLS
SIMPLE JOYSTICK CONTROL. LED SCREEN DISPLAY.
Using a MEKWEL Loader is made easy with smooth, intuitive joystick inputs provided by Walvoil. All critical systems information is displayed through a brightly-lit LED display, with multifunction preset capability. All manual controls are placed exactly where you need them, keeping the learning curve to a minimum for new and seasoned operators.

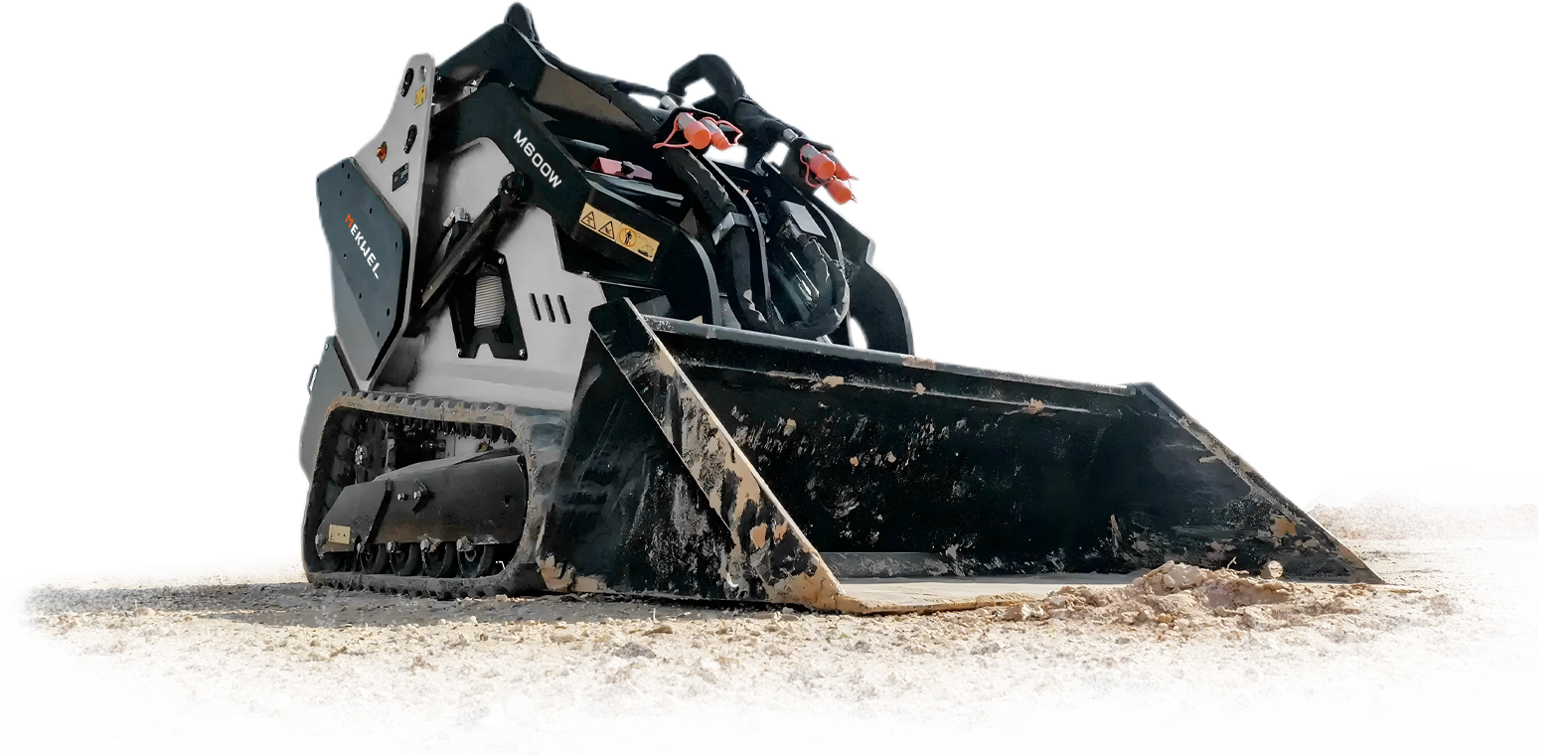

VERSATILE ATTACHMENTS
PICK YOUR ATTACHMENT. TACKLE ANY TASK.

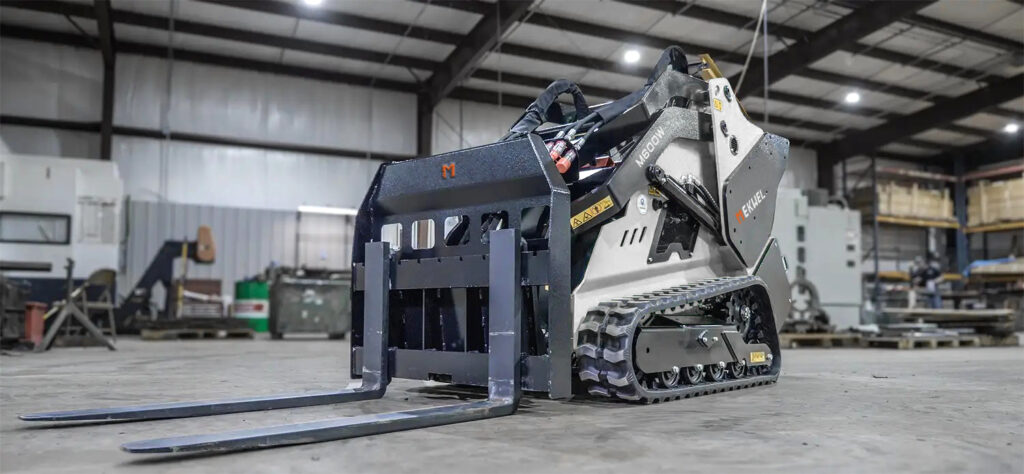

Make quick work of all your projects, thanks to Mekwel’s mini skid steer universal attachment mounting plate. Mekwel offers a variety of attachments including a 49″ standard bucket, tooth bucket, forks, grapple, tree boom lift, plus more.
GENERAL SPECS
Engine
Make/Model
Yanmar 3TNV80F diesel engine
Fuel/Cooling
Diesel/Liquid
Horsepower (SAE Gross J1955)
17.8 kW / 24 HP or 18.4 kW / 24.7 HP
Rated engine speed
3000 RPM
Torque
52.4 ft-lb @1900 RPM (SAE Net)
Number of Cylinders
3
Displacement
1.266 L (77.2 in³)
Bore/Stroke
80 mm (3.15 in) / 84 mm (3.3 in)
Fuel Consumption
1.55 gph
Lubrication
Forced lubrication with trochoid pump
Air Cleaner
Dry replaceable cartridge with safety element
Hydraulics
Pump Type
Drive pump Type: Two closed circuit axial piston pumps. Auxiliary Pump Type: Gear pump
Main Control Valve
2-Spool, open center series parallel configuration
Auxiliary Control Valve
2-Spool, open center series parallel configuration
Auxiliary Flow
11.5 GPM
Hydraulic Filter
Replaceable 10-micron filtration
Hose Quick Couplers
2 Sets of Quick Couplers: Set 1 -2 quick couplers to drive a momentary attachment with cylinder(s). Set 2 – 3 quick couplers to drive constant hydraulic flow attachments, with or without case drain or hydraulic return.
System Relief
Auxiliary pump relief: 2900 psi (200 bar) Ground drive pump relief: 3045 psi (210 bar)
Drive System
Main Drive
Right Hydraulic Motor drives right side track Left Hydraulic Motor drives left side track
Transmission
Direct drive of hydraulic motor to main undercarriage drive sprocket
Tracks
8” inch wide
Capacities
Cooling System
1.3 gal
Engine Oil with Filter
0.8 gal
Fuel Tank
9 gal
Hydraulic Reservoir
11 gal
Hydraulic System
11.9 gal
Performance
Rated Operating Capacity (ROC*)
1300 lbs
Max. Travel Speed
3.5 mph (with high torque drive motors)
Machine Weight with Bucket
3323 lbs
*ROC with standard bucket 18″ off flat ground, full of fuel with operator.
Dimensions
Angle of Departure
28°
Carry Position
7.5 in
Dump Angle @Maximum Height
52°
Dump Height with Standard Bucket
48 in
Dump Reach @Maximum Height
19.4 in
Ground Clearance
6.5 in
Ground Clearance (Under Platform)
11.5 in
Height to Bucket Hinge Pin
76.3 in
Height
54.9 in
Length without Attachment
75.7 in
Length with Standard Bucket
101.7 in
Operating Height
89.4 in
Rollback @Carry Position
40°
Rollback Fully Raised at Maximum Height
40°
Ground Contact Length
41.5 in
Turning Radius with Standard 49″ Bucket
64 in
Machine Width
40.9 in
Wheel Tread (over tracks)
32 in
Width with Standard 49″ Bucket
49.2 in
